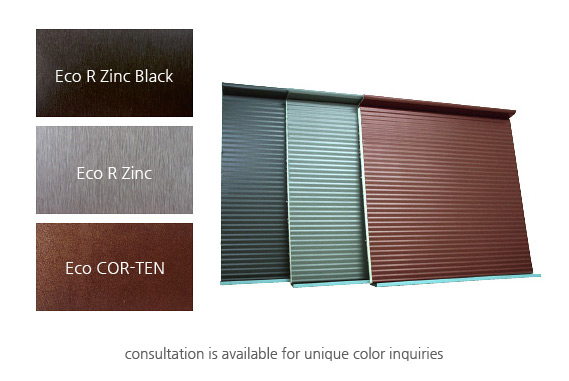

Urethane Zinc Board is a great wall and roofing material for enhancing
heat insulation, dew condensation-preventive, and noise-absorbing
performance by being filled with urethane foam.
Coating the surface of a zinc coated
alloy steel sheet, it is highly durable over time
Being filled with urethane foam which is a
construction insulator with low heat conductivity,
it shows outstanding heat insulation
performance and also saves energy
Applying urethane foam to a zinc coated alloy
steel sheet, it blocks the outside noises and
makes indoor spaces cozy and peaceful.
It is highly resistant to corrosion
and water leakage by adopting a
binding clip fixing system.

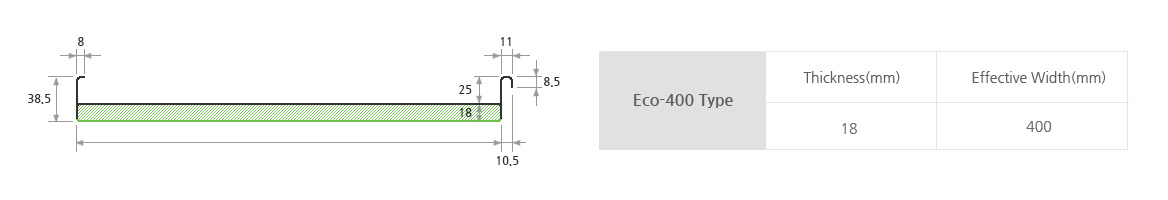

With the small effective width and thickness,
it is lightweight and therefore
applies easily in the field.
| Test item | Unit | Test method | Test result |
|---|---|---|---|
| Thermal resistance (average temperature: 20℃) (thickness: 22.90mm) | (㎡·K)/W | (1) | 0.90 |
| Test item | Result | Acceptance standard | Test method | |||
|---|---|---|---|---|---|---|
| 1st | 2nd | 3rd | ||||
| Thermal emission test | Total amount of heat emitted(MJ/㎡) | 0.9 | 1.3 | 3.3 | Below 8MJ/㎡ | KS F ISO |
| Time (s) when emitted heat exceeds 200k/㎡ sequentially |
0 | 0 | 0 | |||
| fire test Harmful crack, hole, and melting (melting of the whole or dissipation of heartwood) that transpierces specimen |
None | None | None | There has to be none. | ||
| Gas harmfulness test | Idle time (min:s) | 14:15 | 13:53 | - | Longer than 9 min. | KS F 2271 : 2006 |
